Watersaver Single Lift & Turn Lab Gas Tap

£38.86 + VAT

Single Lift/Turn Gas Tap, Bench Mounted

View PDF Technical Drawing – BT2930-1BM

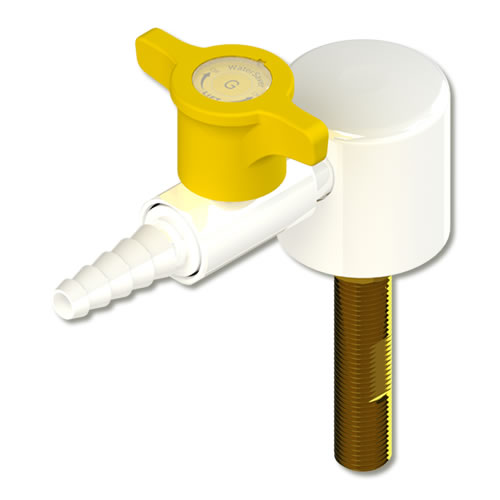

Single Lift & Turn Lab Gas Tap

Application: Control of burning or combustible gases such as natural gas, propane and bottled gas. Fitting is designed as an alternative to the “drop lever” valves used for low pressure gas applications in the United Kingdom and other markets.

Finish: Furnished with white powder coated finish.

Mounting: Turret base with single outlet at 90 degrees.

Valve Bodies: Straight pattern forged brass.

Headworks: Quarter-turn ball valve construction with chrome plated brass balls and molded TFE seals. Valves lock in closed position.

Handle: Spring-loaded molded nylon handles. Handles lock in closed position. Handles must be pulled up to unlock and turned to open valves. Handle alignment indicates if valves are in open or closed position. Handles are color coded and marked per EN 13792.

Inlet: Furnished with mounting shank, locknut and washer. G1/4 male inlet.

Outlet: Integral (nonremovable) serrated hose end.

Quality Assurance: Fitting is fully assembled and factory tested prior to shipment. 8.5 bar (125 PSI) test pressure, 5 bar (75 PSI) maximum working pressure.



Weight 1.0 kg
