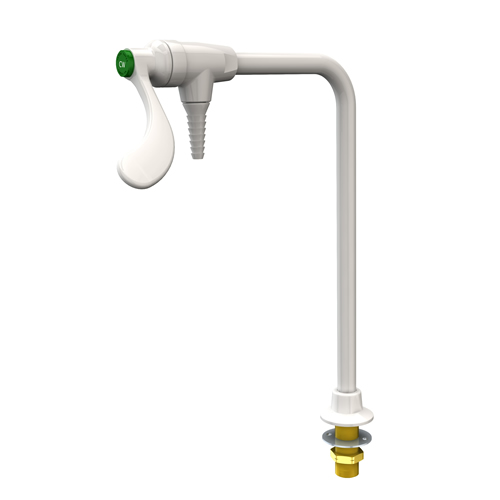

Single Cold Water Lab Tap, Wrist Action Handle

£60.95 + VAT



Single Water Tap, Bench Mounted – Pillar Bib Tap with cold water outlet, Wrist Action Handle

BT380BH-WSA Specification Drawing

Description

Single Cold Water Lab Tap, Bench Mounted, Wrist Action Handle

Application: Laboratory water lab tap for cold water.

Finish: Furnished with white powder coated finish as standard.

Mounting: Bench or countertop mounted with removable locator pins.

Body: Forged brass.

Headwork: WaterSaver self-contained compression valve cartridge with replaceable stainless steel seat.

Handle: Forged brass wrist blade handles with color-coded index discs. Index discs are marked per EN 13792.

Riser: Brass riser with 6” (152mm) spread.

Inlet: Furnished with mounting shank, locknut and washer. G1/2 male inlet.

Outlet: G3/8 female outlet with removable anti-splash serrated hose end.

Quality Assurance: Fitting is fully assembled and factory tested prior to shipment. 10 bar (150 PSI) test pressure and maximum working pressure.

Additional information

Weight1.2 kg
